Interne Anschlüsse:
1 x COM Port Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
1 x CPU Fan Connector (4-pin)**
1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
1 x 24 pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card)
1 x Front Panel Audio Connector (15μ Gold Audio Connector)*****
1 x Right Angle Front Panel Audio Connector*****
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
1 x Clear CMOS Switch
1 x Dr. Debug with LED
1 x Power Switch with LED
1 x Reset Switch with LED
1 x CPU Xtreme OC Switch

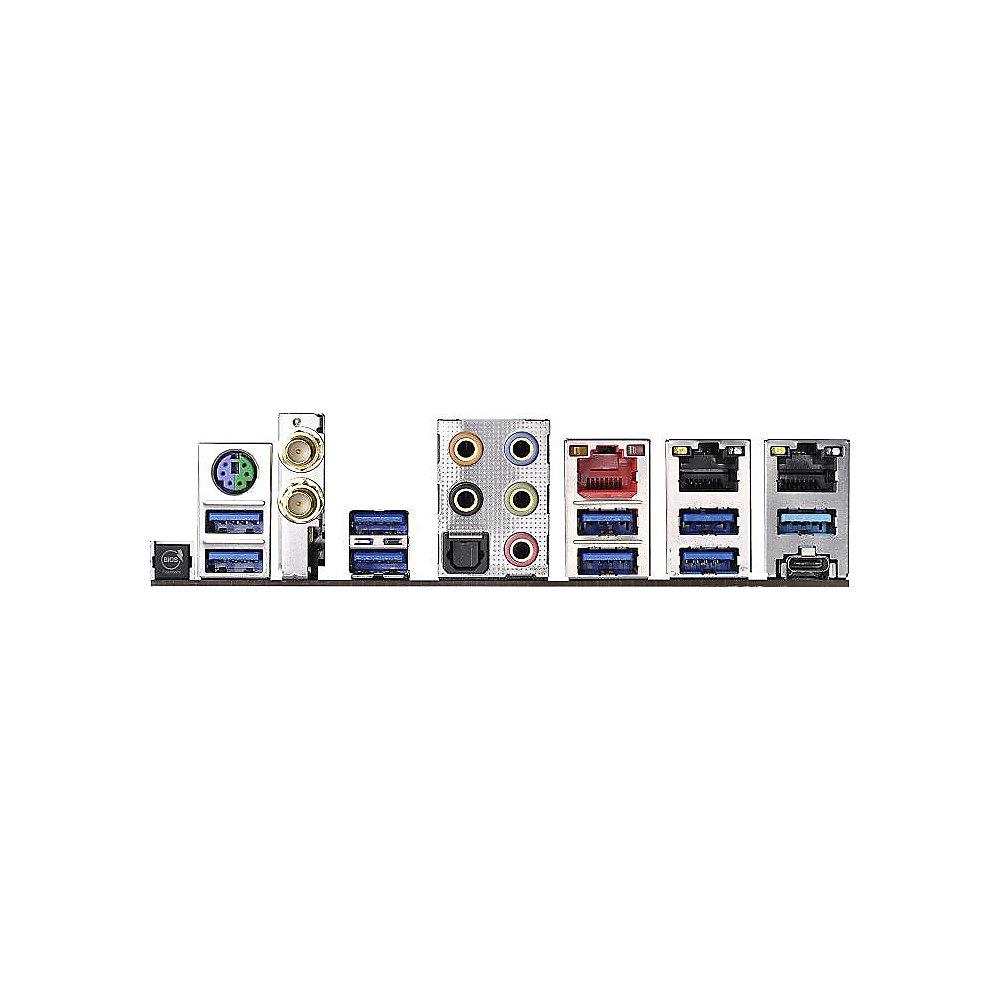

Externe Anschlüsse:
2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x Optical SPDIF Out Port
1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
8 x USB 3.1 Gen1 Ports (Supports ESD Protection)
3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x BIOS Flashback Switch
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
