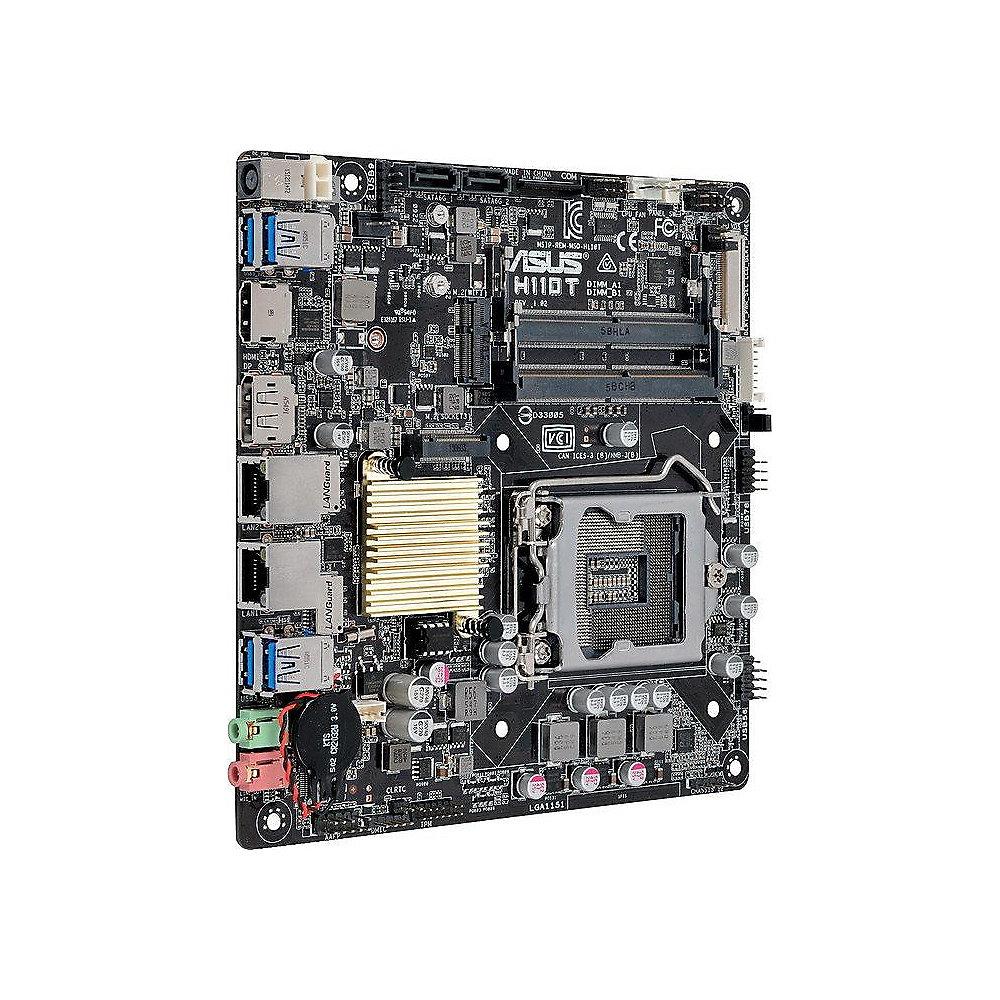

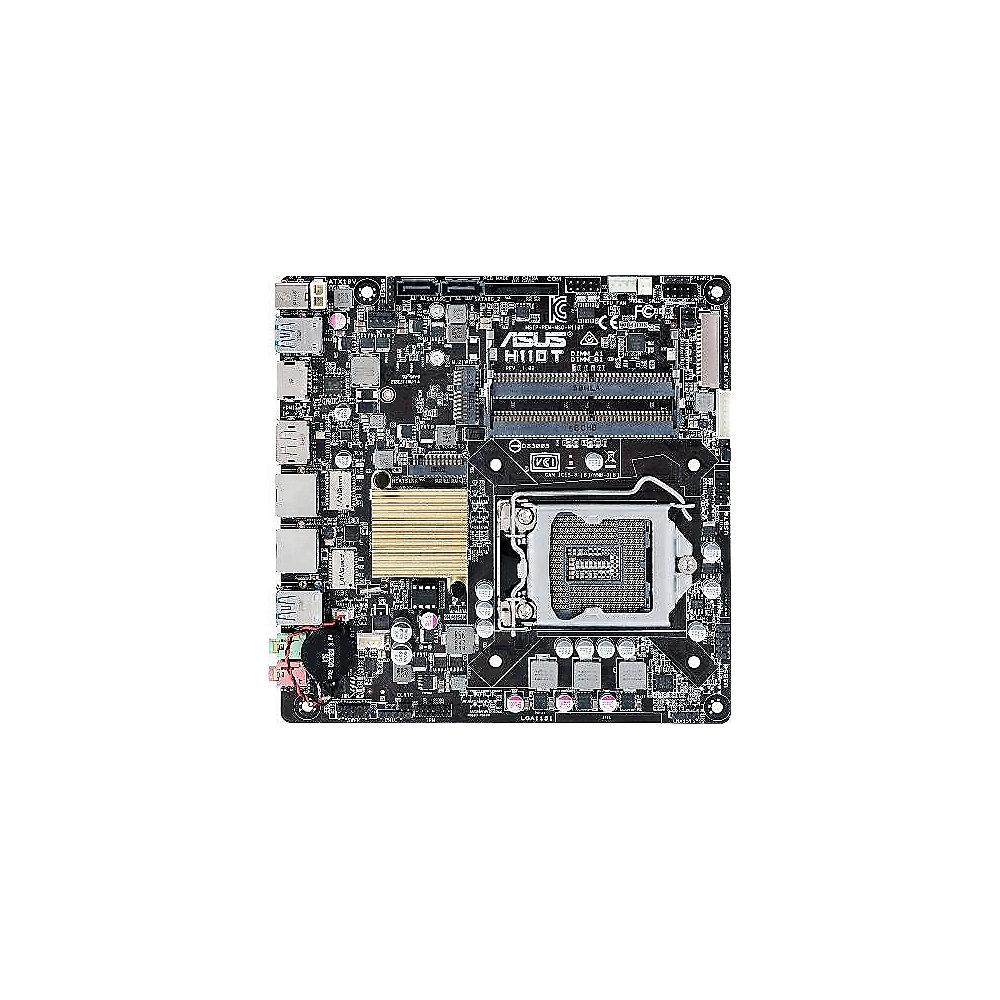

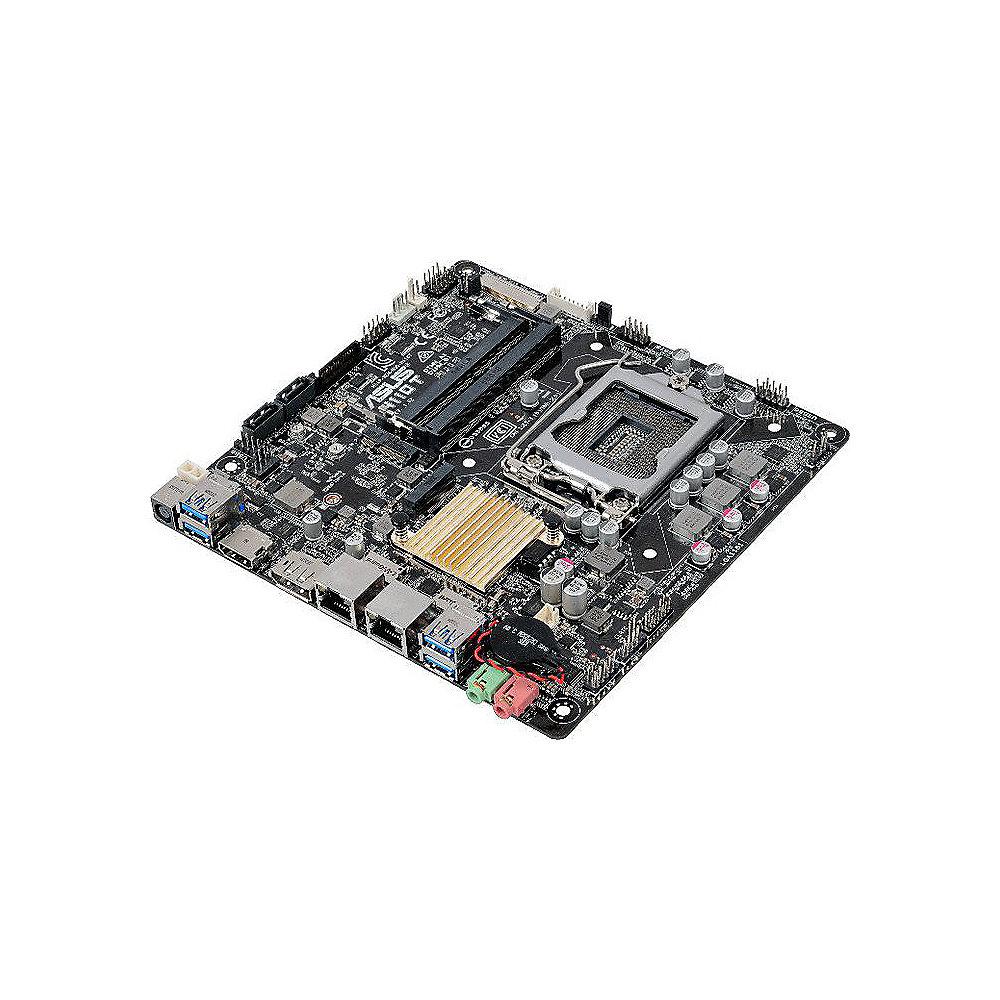

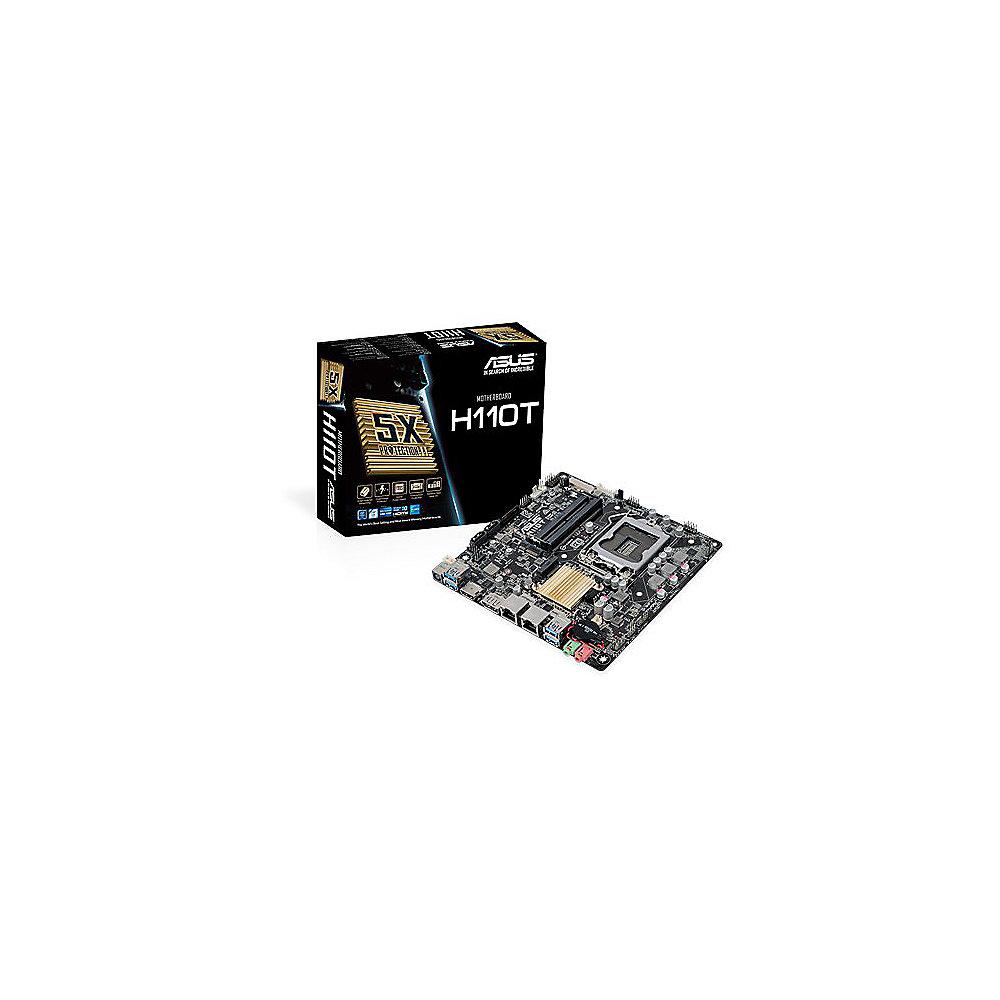

ASUS H110T USB3.0/M.2/SATA600/HDMI/DP M-ITX Mainboard Sockel

ITX Mainboard mit Sockel Intel 1151 für Intel Core i7 (Skylake), Intel Core i5 (Skylake), Intel Core i3 (Skylake) Prozessoren

Intel H110

2 x SO-DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory

unterstützt ECC: nein

Speicherkanäle: Dual Channel

Intel HD Graphics Grafikchipsatz

Interne Anschlüsse:

3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)

1 x COM port(s) connector(s)

2 x SATA 6Gb/s connector(s)

1 x SATA power connector(s)

1 x CPU Fan connector(s)

1 x Chassis Fan connector(s) ()

1 x Front panel audio connector(s) (AAFP)

1 x Chassis Intrusion connector(s)

1 x Clear CMOS jumper(s)

1 x 2-pin internal DC power connector

1 x Stereo speaker connector

1 x DMIC header

1 x Backlight inverter voltage selection header

1 x FPD brightness header

1 x Panel voltage selection header

1 x Panel off header

1 x LVDS connector(s)

1 x 14-1 pin TPM connector

1 x System panel connector

1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode

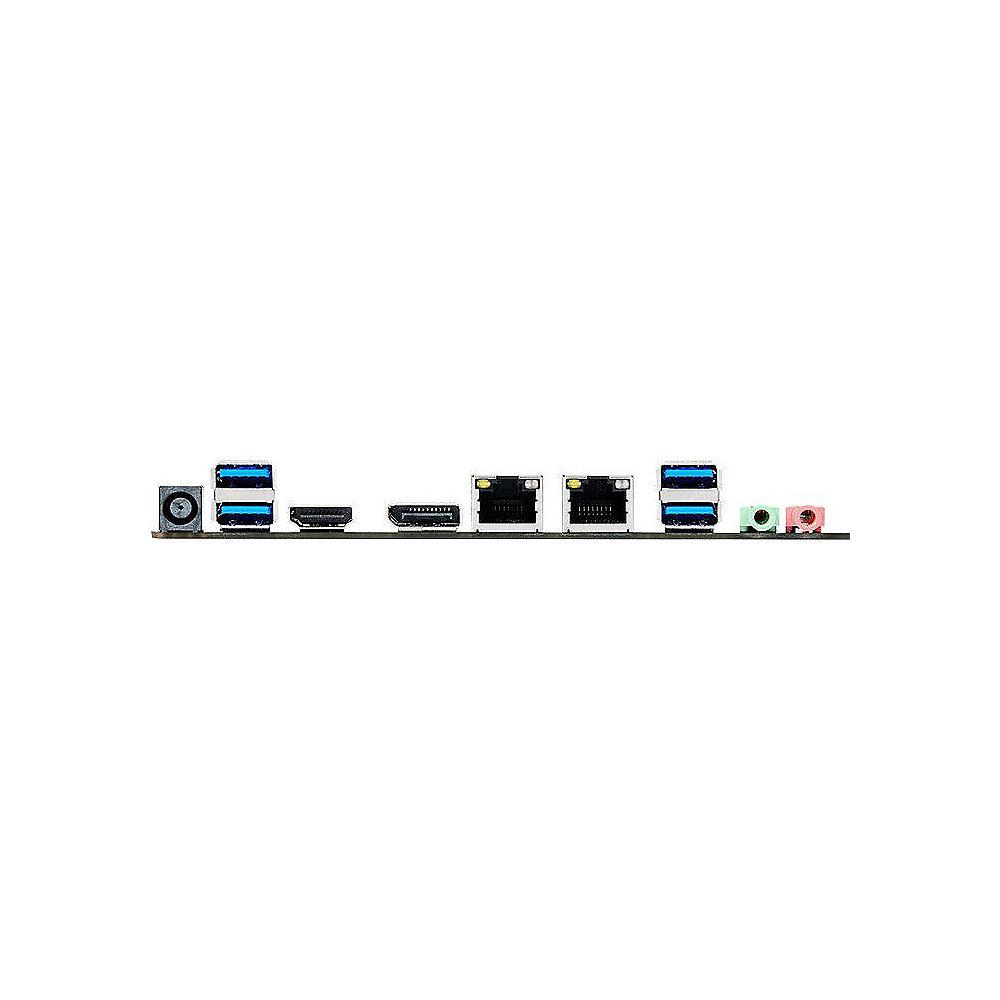

Externe Anschlüsse:

1 x DisplayPort

1 x HDMI

2 x LAN (RJ45) port(s)

4 x USB 3.1 Gen 1 (blue)

2 x Audio jack(s)

1 x DC power connector(s)

2x Gigabit-LAN,

Realtek ALC887, 8-Kanal Audio

USB 3.1 (Typ C) Windows 10 ready

Windows® 10 , 64bit

Windows® 8.1 , 64bit

Windows® 7 , 32bit/64bit

User's manual

I/O Shield

Thin Mini ITX I/O Shield

1 x SATA power cable

2 x SATA 6Gb/s cable(s)

2 x M.2 Screw Package

1 x Supporting DVD

3 Jahre
