ASUS Prime J4005I-C Celeron SoC HDMI/VGA/parallel

Mini-ITX Mainboard mit Sockel SoC (System-on-Chip) für Intel Celeron DualCore Prozessoren

Celeron DualCoreJ4005, 4x 2,0GHz - 2,7GHz Turbo

8 GB maximaler Arbeitsspeicher

2x RAM-Slots (Steckplätze für Arbeitsspeicher)

DDR4-2133, DDR4-2400

unterstützt ECC: nein

Speicherkanäle: Dual Channel

Intel HD Graphics Grafik

Multi-VGA Unterstützung

HDMI mit max. Auflösung 3840 x 2160 @ 30 Hz

VGA mit max. Auflösung 1920 x 1200 @ 60 Hz

Shared Memory 512MB

Interne Anschlüsse:

2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB mode

1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (PCIe x 2 mode)

1 x LPT header

1 x COM port(s) connector(s)

2 x SATA 6Gb/s connector(s)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Chassis Intrusion connector(s)

1 x Clear CMOS jumper(s)

1 x Panel off header

1 x LVDS connector(s)

1 x System panel connector

1 x Flat panel display brightness connector

1 x Display panel VCC power selector

1 x Speaker connector

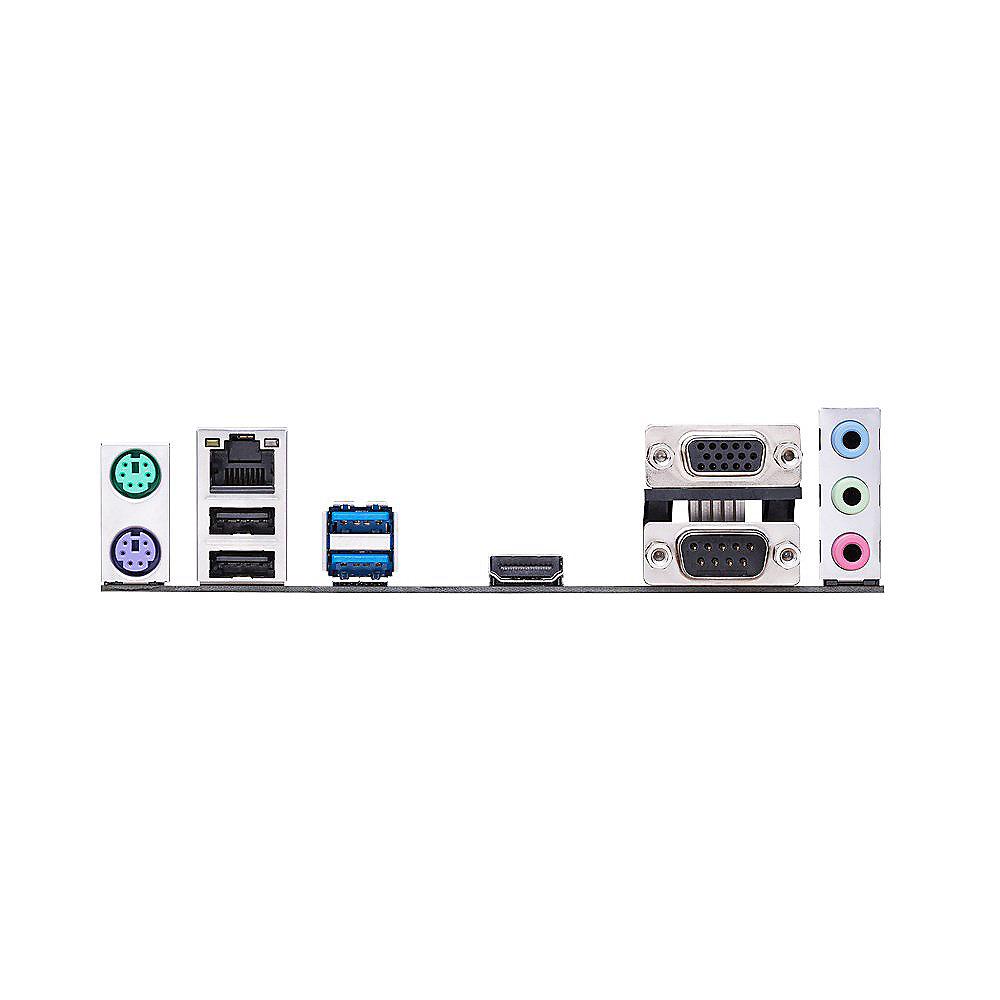

Externe Anschlüsse:

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 1 ,

2 x USB 2.0

1 x COM port(s)

3 x Audio jack(s)

1x Gigabit-LAN,

Realtek ALC887, 8-Kanal Audio

Windows 10, Linux, Integrierte CPU (SoC) Heatsink-Kühlung

Benutzerhandbuch, Treiber-CD, Slotblende,

3 Jahre
