ASUS X99-E-10G WS 2xGL/SATA600/M.2 SSI Workstation

CEB Form Factor ATX Mainboard mit Sockel Intel 2011-3

Intel® Socket 2011-v3 Core™ i7/Core™ i7 X-Series Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Max Technology 3.0

Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v3 product family

Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v3 product family

Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family

Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family

Intel X99 Express

128 GB maximaler Arbeitsspeicher

8x RAM-Slots (Steckplätze für Arbeitsspeicher)

DDR4-2133 bis DDR4-3333(OC)

unterstützt ECC: ja

Speicherkanäle: Quad-Channel

keine integrierte Grafik Grafikchipsatz

7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)

Interne Anschlüsse:

1 x RGB Header(s)

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 for M Key, type 2260/2280 devices

1 x TPM connector(s)

10 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x CPU OPT Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (4 x -pin)

1 x S/PDIF out header(s)

2 x 8-pin EATX 12 V Power connector

1 x 6-pin EATX 12 V_1 Power connector(s)

1 x 24-pin EATX Power connector(s)

1 x EZ XMP switch

1 x Front panel connector(s)

1 x System panel(s) (Q-Connector)

1 x DRCT header(s)

1 x MemOK! button(s)

1 x CPU OV

1 x Power-on button(s)

1 x Reset button(s)

1 x Clear CMOS button(s)

1 x SLI/CFX switch (2/3-WAY adjustments)

1 x USB BIOS Flashback button(s)

1 x Water Pump header (4-pin)

1 x 3-pin CHASSIS(Chassis intrusion) connector

1 x COM port header

1 x U.2 Connector (support U.2 NVMe device)

1 x High AMP Fan Header

1 x T_Sensor Connector

Externe Anschlüsse:

2 x USB 3.1 Gen 2 Type-A + Type-C

4 x USB 3.1 Gen 1 (blue)

1 x Optical S/PDIF out

5 x Audio jack(s)

2 x Intel 10G LAN (BASE-T) Ports

Realtek ALC1150, 8-Kanal Audio

Intel® X550-AT2 10, 2 x Gigabit LAN ports

Windows 8.1 32/64-bit

Windows 8 32/64-bit

Windows 7 32/64-bit

Quad Sli CrossFireX Heatpipe-Kühlung Optical S/PDIF-Out Anschluß

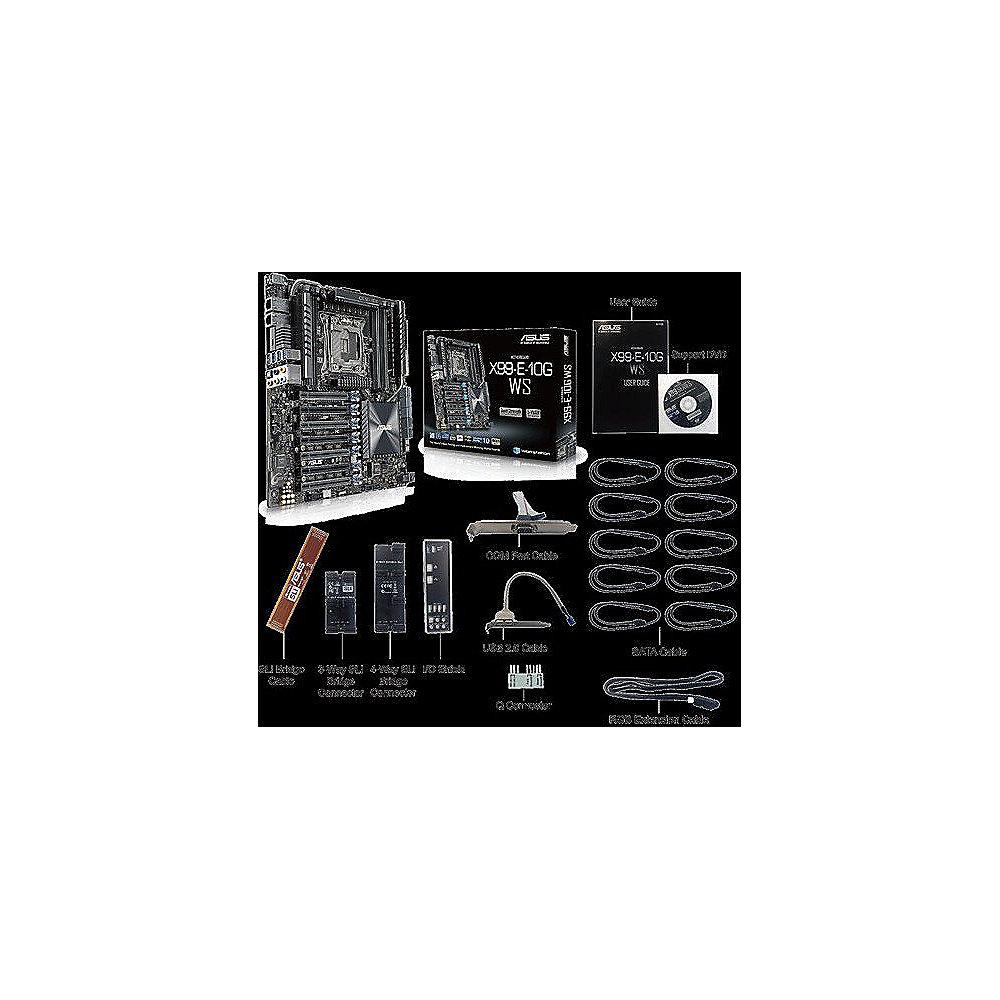

User's manual

I/O Shield

1 x COM port cable(s)

10 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x 3-Way SLI bridge(s)

1 x 4-Way SLI bridge(s)

1 x SLI bridge(s)

1 x Q-connector(s) (2 in 1)

1 x 2-port USB 2.0 module(s)

1 x Extension Cable for RGB strips (80 cm)

3 Jahre
