Bedienungsanleitung für Sonnet Echo 11 Thunderbolt 3 Dock ECHO-DK11-T3

Klicken Sie um das Bild zu vergrößern
Sonnet Echo 11 Thunderbolt 3 Dock ECHO-DK11-T3 Inhalt der Anleitung für Sonnet Echo 11 Thunderbolt 3 Dock ECHO-DK11-T3
  • Produktkategorie: Adapter - Thunderbolt Sonnet
  • Marke: Sonnet
  • Beschreibung und Inhalt der Verpackung
  • Technische Informationen und Grundeinstellung
  • Häufig gestellte Fragen – FAQ
  • Problemlösungen (kann nicht eingeschaltet werden, reagiert nicht, fehlerhafte Meldung, was zu tun ist, wenn...)
  • Autorisierter Service Sonnet Adapter - Thunderbolt

Sonnet Echo 11 Thunderbolt 3 Dock ECHO-DK11-T3 Sonnet Echo 11 Thunderbolt 3 Dock ECHO-DK11-T3 Sonnet Echo 11 Thunderbolt 3 Dock ECHO-DK11-T3
Die Bedienungsanleitung zu Sonnet Echo 11 Thunderbolt 3 Dock ECHO-DK11-T3 enthält die grundlegenden Anweisungen, die bei der Installierung und beim Betrieb zu respektieren sind. Lesen Sie diese Anleitung vor der Inbetriebsetzung sorgfältig durch! Befolgen sie alle Sicherheitsanweisungen und Warmhinweise und richten Sie sich nach den angeführten Empfehlungen. Die Anleitung bildet einen untrennbaren Bestandteil des Sonnet Produkts und sollte bei dessen Verkauf oder Ortswechsel gemeinsam mit dem Produkt übergeben werden. Die Einhaltung dieser Gebrauchsanleitung stellt eine unabdingbare Voraussetzung dar für den Schutz der Gesundheit von Personen und für die Anerkennung der Haftung des Herstellers für etwaige Mängel des Produkts innerhalb der Garantiefrist. Laden sie ich die offizielle Sonnet-Anleitung herunter, in der Sie die Anweisungen zu Installierung, Benutzung, Wartung und Service Ihres Produkts finden.

Und vergessen sie nicht: Durch eine unsachgemäße Handhabung des Sonnet Produkts verkürzt Sie dessen Lebensdauer erheblich!



Produktbeschreibung:

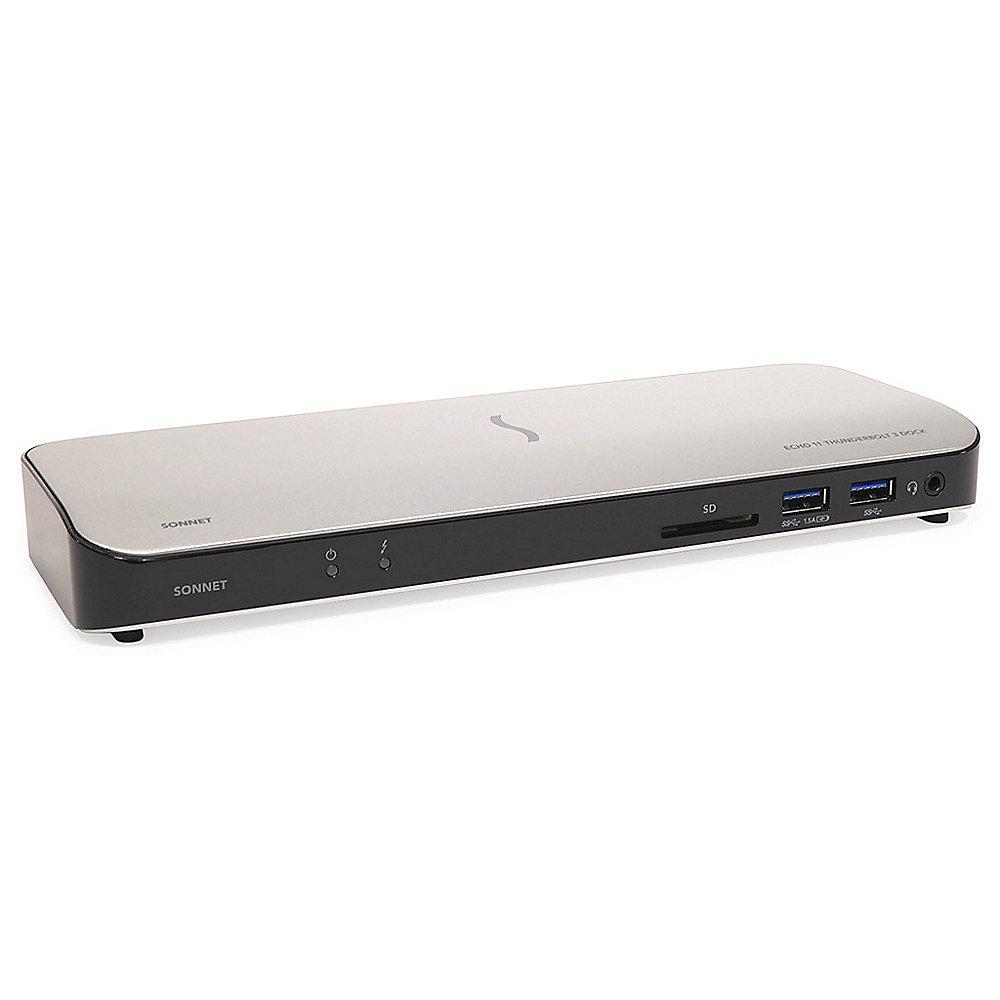

Thunderbolt 3 Docking Station with 87W Power Delivery

Features

Thunderbolt 3 x 2

USB 3.0 x 5

Gigabit Ethernet

HDMI 2.0

Combo Audio

SD Card Reader

Dual 4K Display Support

87W Power Delivery

Connect To Your Peripherals and Power Your Computer…With One Cable

Sonnet’s Echo 11 Thunderbolt 3 Dock connects your peripherals to your computer through a single cable. Simply plug in your devices—such as a printer, keyboard, mouse, cable modem, hard drive, optical drive, USB license dongle, headphones or powered speakers, phone, tablet, and (up to) two 4K displays—to the dock with their supplied cables, and then connect your computer with the included Thunderbolt 3 (40Gbps) cable. The Echo 11 dock even charges compatible computers(5) through the same cable. When it's time to take your computer and go, just unplug the Thunderbolt cable to disconnect from everything at once!

Thunderbolt Certified for Mac® and Windows®

The Echo 11 Thunderbolt 3 Dock works with Mac and Windows(4) computers with Thunderbolt 3 ports.

Key Features

• Connects Your Peripherals with One Cable — Plug in peripherals to the dock with their cables, connect the dock to your computer with the included Thunderbolt 3 cable

• Eleven Interface Types — Five USB 3.0, two Thunderbolt 3, Gigabit Ethernet, audio, and HDMI 2.0 ports

• macOS and Windows Compatible — Works with any Thunderbolt 3 Mac or Windows(4) computer

• Computer Charging Port — Main Thunderbolt 3 port provides power to computers that accept charging over Thunderbolt 3, supporting them at the maximum power they will accept; leave your computer’s power adapter packed away!

• USB Charging Port — Front panel USB port can charge an iOS device, or other device that charges via USB, even while the computer is off or disconnected

• 40Gbps Thunderbolt 3 Interface — Fastest interface available, supports daisy chain connection of additional devices

• Supports Up to Two 4K Displays — Connect one display to the HDMI 2.0 port, another(6) to the second Thunderbolt 3 port or at the end of the Thunderbolt 3 device chain

• Wide Range of Second Display Connection Options — Select from a variety of inexpensive Thunderbolt 3 or USB-C to popular display interfaces such as HDMI, DVI, etc.

• SD Card Slot — Reads SD, SDHC, and SDXC memory cards

• Backward Compatible with Thunderbolt 2 and Thunderbolt Macs — When used with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter

Leave Your Charger In the Backpack

For users whose notebooks and laptops accept charging over Thunderbolt(5), the Echo 11 dock also provides up to 87W of Power Delivery through the included Thunderbolt 3 cable(3) used to connect the dock to the computer. These computers fall into four power requirement categories: 30W (example: Dell XPS 12), 45W (example: Dell XPS 13), 60W (example: MacBook Pro® 13-inch), and 87W (example: MacBook Pro 15-inch)—the Echo 11 charges them at the maximum power they will accept so you can leave your computer’s power adapter packed away!

40Gbps Thunderbolt 3—The USB-C That Does It All

The Echo 11 Dock includes two Thunderbolt 3 ports; one for connection to your computer, the other to daisy chain up five additional Thunderbolt peripheral devices(1) to your computer! The Echo 11 includes 10Gbps USB 3.1 Gen 2 support, meaning you can connect another USB device to the second Thunderbolt port using the proper cable or adapter. The Dock’s Thunderbolt 3 peripheral port can also provide up to 15 watts of bus power to devices requiring extra power for even the most demanding bus-powered USB 3.1 or Thunderbolt devices.

Connect a 4K Display or Two

The Echo 11 dock features an HDMI 2.0 port that supports a 4K @ 60Hz (or lower resolution) monitor. To connect an additional display(6), you can plug in a Thunderbolt 3 monitor to the dock’s second Thunderbolt 3 port or at the end of a Thunderbolt 3 device daisy chain. Or, you may connect other display types (HDMI, DisplayPort, etc.) by using a Thunderbolt 3 or USB-C video adapter (sold separately).

Connect one HDMI display to the Echo 11 dock’s HDMI port, and another(6) display to its second Thunderbolt 3 port. Display interface types that can be connected to the dock via the second Thunderbolt 3 port include:

Display Connection

• Thunderbolt 3 – Thunderbolt 3 cable

• DisplayPort – USB-C to DisplayPort cable or adapter

• Mini DisplayPort – USB-C to mini DisplayPort cable or adapter

• HDMI – USB-C to HDMI cable or adapter (with Thunderbolt 3 support)

• DVI – USB-C to DVI cable or adapter (with Thunderbolt 3 support)

• Dual-Link DVI – USB-C to HDMI adapter HDMI to Dual-Link DVI adapter

• VGA – USB-C to VGA cable or adapter (with Thunderbolt 3 support)

• USB-C/DisplayPort – USB-C cable with 4K video support

Backward-Compatible with Older Macs

The Echo 11 Thunderbolt 3 Dock is also compatible with Macs with Thunderbolt 2 or Thunderbolt ports(7) when used with the bi-directional Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter and a Thunderbolt cable (both sold separately).

Connection Condenser

With its eleven ports, the Echo 11 Thunderbolt 3 Dock is a handy hub to plug in your peripherals and connect them all to your computer through a single Thunderbolt 3 cable. Through that same cable, the Dock provides enough power (87W) to charge any compatible computer at maximum power. You can even connect two 4K @ 60Hz displays to expand your view and productivity!

Technical Notes

1 Second Thunderbolt 3 port supports USB 3.1 Gen 1 (5Gb) or Gen 2 (10Gb) devices when connected with proper cable or adapter (sold separately).

2 Second Thunderbolt 3 port supports Thunderbolt 3 devices natively. Also supports Thunderbolt and Thunderbolt 2 devices on Macs when used with the Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter, sold separately.

3 Full data transfer speed and power delivery capabilities require the use of the included or comparable Thunderbolt 3 (40Gbps) cable (which also supports all laptop power deliveries). Please be aware that some other cables support only lower data transfer speeds (20Gbps) and/or power delivery capabilities (60W).

4 Windows computers require the latest firmware (BIOS) and other drivers to support this product. Check with your computer manufacturer for update information.

5 MacBook Pro® computers and many PC laptops with Thunderbolt 3 may be charged via the Echo 11 dock’s Thunderbolt 3 charging port, but some PC laptops will not accept charging from a Thunderbolt peripheral. Visit this web page and click the Filter by Brand/OEM link matching your computer, and then locate your computer model to determine its capabilities. Please note that at any given time this list may not be completely up to date. If your computer model is not listed, please contact the manufacturer for information.

6 When used with a Thunderbolt 2 or Thunderbolt Mac, only one 4K display is supported. Not all Thunderbolt 3 Windows computers support dual displays or 60Hz refresh rates. Visit this web page and click the Filter by Brand/OEM link matching your computer, and then locate your computer model to determine its capabilities. Please note that at any given time this list may not be completely up to date. If your computer model is not listed, please contact the manufacturer for information.

7 When used with a Mac with Thunderbolt 2 or Thunderbolt ports, the Echo 11 Dock does not provide power delivery to charge the computer, the second Thunderbolt 3 port does not support USB devices, and only one 4K monitor is supported.





Hochladen einer Anleitung:

Besitzen Sie eine Bedienungsanleitung für Sonnet Echo 11 Thunderbolt 3 Dock ECHO-DK11-T3 in elektronischer Form? Schicken Sie sie uns bitte und helfen Sie, unsere Handbuch-Bibliothek auszubauen. Vielen Dank auch im Namen der übrigen Benutzer.

Für die Hochladen der Anleitung muss überprüft werden, dass Sie kein Roboter sind. Danach erscheint der Schaltfläche "Link Speichern" oder "Hochladen der Datei".
PDF Bedienungsanleitung hochladen DOC Bedienungsanleitung hochladen
Hier geben sie den Link ein zur Bedienung dieses Produkts:





ODER

Hier geben Sie die Datei ein mit der Anleitung zur Bedienung dieses Produkts:
(60MB max; Erlaubte Formate: pdf, docx, jpg)

0%


Technische Parameter:

Sonnet Echo 11 Thunderbolt 3 Dock ECHO-DK11-T3

Technische Daten

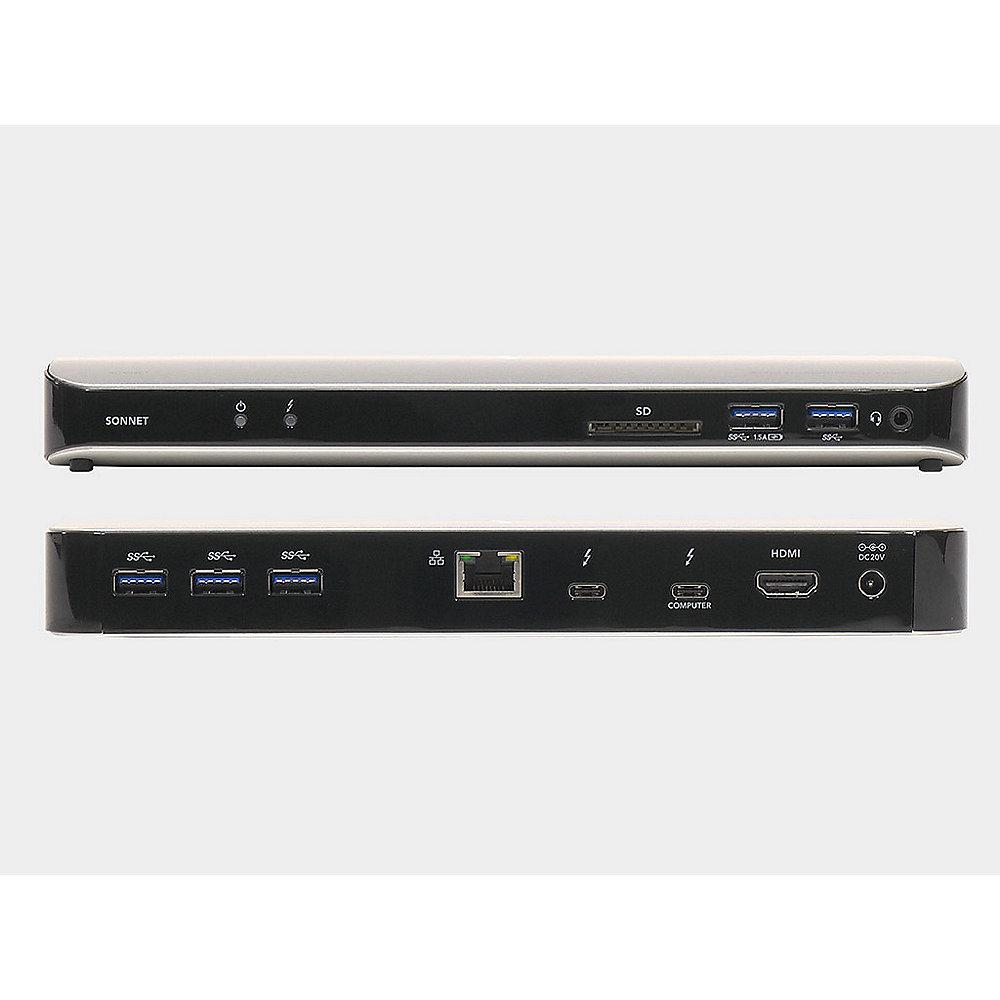

Form Factor Thunderbolt 3 dock

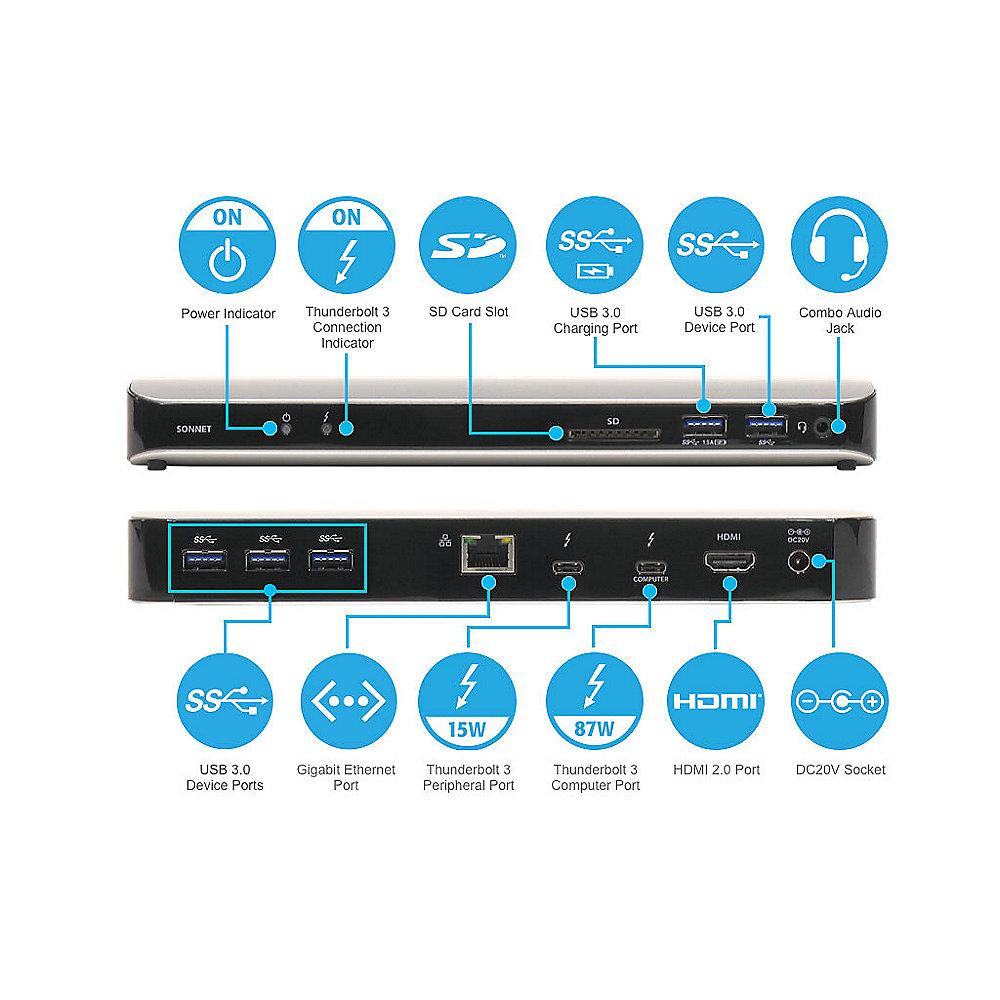

External Connectors

Two Thunderbolt 3

Five USB 3.0

One RJ45 (Gigabit Ethernet)

One HDMI 2.0

One 3.5 mm combination audio headphone/microphone

One SD card slot

One power

Power Adapter Universal 180W, 100-240V, 50-60 Hz

Operating Temperature 0º C to 35º C (32º F to 95º F)

Dimensions (WxDxH) 9.1 x 3.44 x 1.09 in. (23 x 8.73 x 2.77 cm)

RoHS Compliant Yes

Standard HDMI 2.0 and HDCP 2.2(3)

Supported Resolutions

Standard HDMI 2.0 and HDCP 2.2(3)

Supported Resolutions

3840 x 2160

2560 x 1440

1920 x 1080

1920 x 1440

1920 x 1200

1856 x 1392

1792 x 1344

1680 x 1050

1600 x 1200

1440 x 990

1400 x 1050

1360 x 768

1280 x 1024

1280 x 960

1280 x 720

1152 x 768

1024 x 768

Gigabit Ethernet

Network Connector One RJ45 connector supports 1000 Mb/s, 100 Mb/s, and 10 Mb/s network speeds and Auto-MDI/MDI-X

Standard Compliant with 10/100/1000 IEEE 802.2 Specification

Network Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)

Packets Maximum packet size: 9000 bytes (Jumbo packets)

Wake-on-LAN Supported

Netboot Supported

Chipset Intel i210

Thunderbolt 3

Connectivity Thunderbolt 3

Peripherals Supported Supports all industry standard Thunderbolt devices

Daisy Chain Up to six devices

Hot Plug Supports hot-pluggable device connection

Power Delivery Supports all Thunderbolt-charged laptops at maximum draw (30W, 45W, 60W or 87W)

USB 3.0

Ports Two in front plus three in rear

Cables Supported With standard male USB-A connector

Peripherals Supported Supports all industry standard USB 3.0, 2.0 and 1.1 devices

Data Transfer Rate USB 3.0: 5 Gb/s

Number of Devices Supported Up to 30

Hot Plug Supports hot-pluggable device connection

Charging

One front panel port with 7.5W capacity to charge iPad, iPhone, iPod, or other USB Battery Charging 1.2–compliant device

Supports charging while sleeping or disconnected from computer

Supports simultaneous charging and synching

Video Support (via Thunderbolt 3 Port)

Thunderbolt 3 Thunderbolt 3 cable

DisplayPort USB-C to DisplayPort cable or adapter

mini DisplayPort USB-C to mini DisplayPort cable or adapter

HDMI USB-C to HDMI cable or adapter (with Thunderbolt 3 support)

DVI USB-C to DVI cable or adapter (with Thunderbolt 3 support)

Dual-Link DVI USB-C to HDMI adapter + HDMI to Dual-Link DVI adapter

VGA USB-C to VGA cable or adapter (with Thunderbolt 3 support)

USB-C/DisplayPort USB-C cable with 4K video support

Resolution Dependent on computer video controller specification

Audio Connector

Combination One 3.5 mm jack for stereo headphones, or stereo headphones with monaural analog microphone, or powered speakers

Front Panel Indicators

Power Power LED indicator lights when dock is powered

Thunderbolt 3 Connection LED indicator lights when computer connected to the dock is powered on, and turns off when the computer is sleeping or disconnected.

Lieferumfang

Echo 11 Thunderbolt 3 Dock

One 0.5m Thunderbolt 3 cable

One power adapter

One power cord

Documentation

Systemvoraussetzungen

Mac Compatibility

Mac with Thunderbolt 3 ports

Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt cable(1)

macOS® 10.12.6+

macOS High Sierra compatible

Windows Compatibility

PC with Thunderbolt 3 ports(2)

Windows 10 (64-bit Edition Version 1803 or greater)

Garantie

Weitere Informationen zum Service, Support und zu den Garantiebedingungen des Herstellers finden Sie hier!
